BUILDING COVERAGE RATIO (BCR)





ELECTRICAL LOAD CALCULATION

  1.   LIGHT                      = 100
  2.   SPOT LIGHT           = 50
  3.   FAN                          = 100
  4.   CHANDILIER          = 500
  5.   DOUBLE SOCKET = 400
  6.   SINGLE SOCKET   = 200
  7.   HEATER                  = 1500
  8.   COOKER                 = 400
                                       = (total amount)




AC LOAD CALCULATION

  1.   1 TON       = 1.3 K/W
  2.   1.5 TON   = 2.0 K/W
  3.   2 TON     = 3.2 K/W
  4.   2.5 TON  = 3.4 K/W
  5.   3.0 TON  = 3.9 K/W
  6.   12 CM2 AREA = ONE TON UNIT

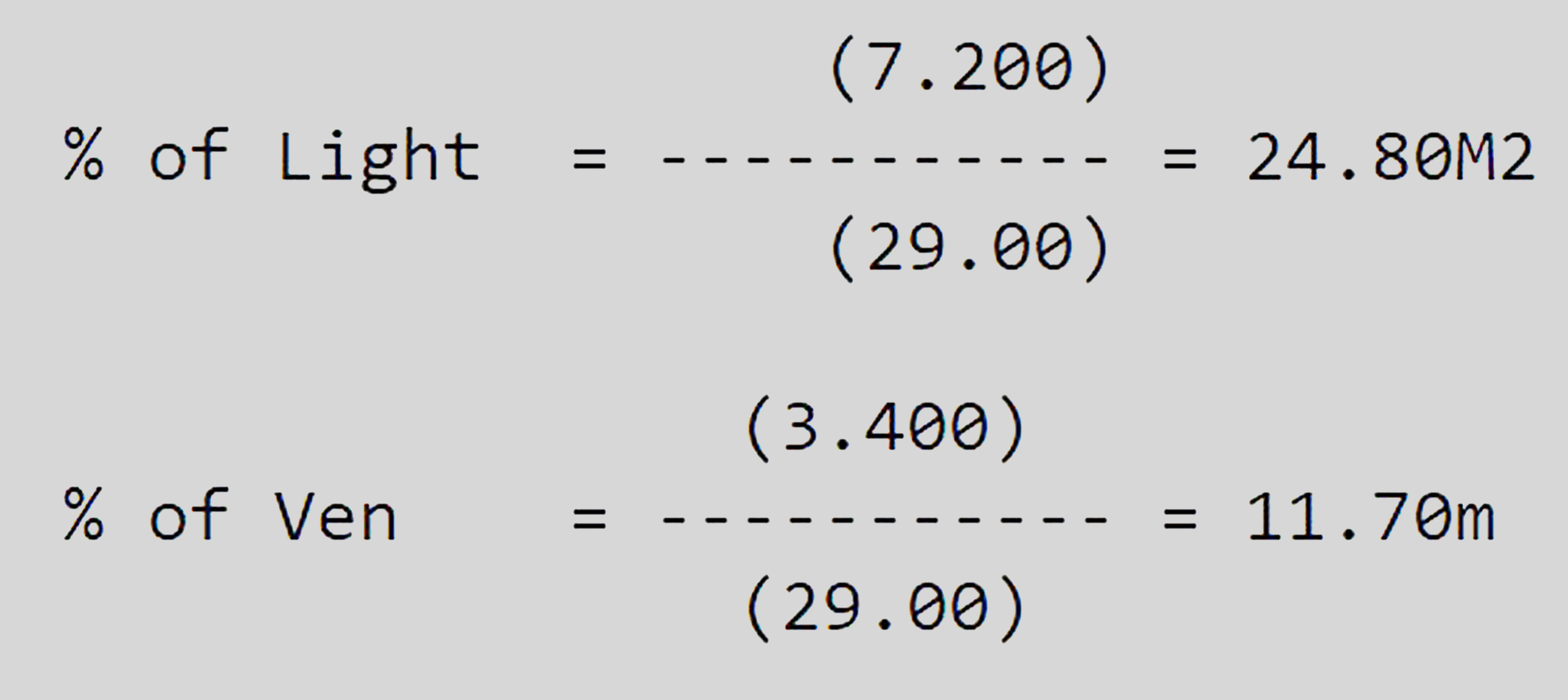

PERCENTAGE OF LIGHT & VENTILATION

  1.    BEDROOM  AREA           = (29.00M2)
  2.   FULL WINDOW ARAE    = (7.200M2)
  3.   OPEN WINDOW AREA    = (3.40M2)
  5. Finally must been multiple to 100 (eg 0.117224 x 100 =  11.70 %)
-----------------------------------------------------------------------------------------------------------
  1. VENT MINIMUM   - 4.00%
  2. LIGHT MINIMUM - 8.00%


PERCENTAGE CALCULATION FOR BALADIYA

  1.   % of SERVICE AREA RATIO

  2.   % of ROOF FLOOR RATIO

  3.   % of BUILDUP RATIO

  4.   % of ONLY ANY ONE BLOCK (eg: driver room)


GIS FORMAT

  1.
  2. PRESETS :-
  3. CLICK HERE TO DOWNLOAD PRESETS
  4. PASTE TO HERE (C:\Program Files\Autodesk\AutoCAD 20__)
  5. REFRANCE FILE : CLICK TO DOWNLOAD HERE
